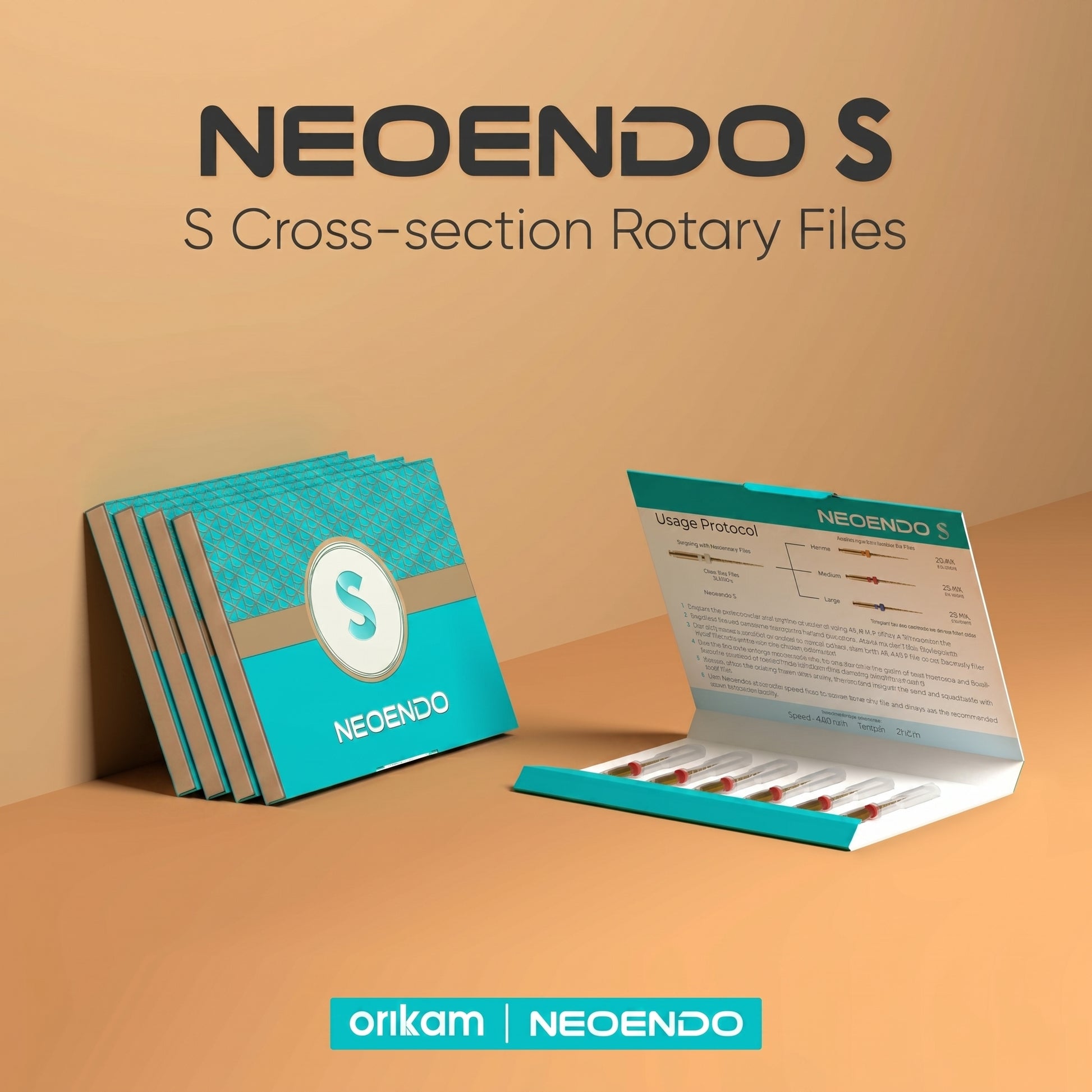

Neoendo S – S-Shaped Cross-Section NiTi Rotary Files
Product Type
NiTi Rotary Endodontic Files
Material
Nickel-Titanium (NiTi) Wire
Heat Treatment
Proprietary Heat-Treated NiTi Wire
Cross-Section
Special S-Shaped Cross-Section
Radial Wall Contact
Minimum radial wall contact, helping reduce stress on the file
Cutting Design
Two-blade sharp cutting surface for enhanced cutting efficiency
Pitch Design
Progressively Increasing Pitch
Pitch Advantage
Helps avoid the screw-in effect during rotary instrumentation
Tip Design
Non-Cutting Safety Tip
Safety Tip Function
Helps reduce ledge formation, canal transportation and apical extrusion
Flexibility
Excellent flexibility for negotiating curved and challenging canals
Fracture Resistance
High fracture resistance due to proprietary heat-treated NiTi wire
Debris Removal
Upward debris augering helps prevent debris from being pushed or packed into the apical third
Available Tip Sizes
17, 20, 25, 30, 35
Available Tapers
4% and 6%
Available Lengths
21 mm and 25 mm
Taper Indicator
1 Ring = 4% Taper | 2 Rings = 6% Taper
Tip Size Indicator
Colour-coded ring indicates the tip size
Length Marking
Length markings help control working length during canal preparation
Recommended Speed
400 RPM
Recommended Torque
2 N·cm
Primary Application
Root Canal Cleaning, Shaping and Preparation
Clinical Application
Suitable for narrow, curved and challenging root canals
Glide Path
For obliterated, calcified or severely curved canals, establish a proper glide path using suitable K-files or Neoendo Flex Glide Files before rotary preparation
Recommended Motion
Brushing Motion – take the file passively to the point of least resistance and brush out of the canal
Irrigation
Clean cutting flutes regularly, irrigate the canal and recapitulate with a K-file during preparation
Usage Precaution
Use with a gentle touch; never force the file and always use recommended speed and torque settings
